Grain Drying Systems
High-capacity and gentle drying systems for every need — from continuous 5HL towers for industrial-scale operations to 5HX batch recirculating dryers for seeds and specialty grains, preserving quality and minimizing breakage.
- Save Energy: Up to 30% lower fuel consumption
- Ensure Uniform Drying: Advanced PLC automation
- Global Support: 24/7 technical service and spare parts
Browse by Category

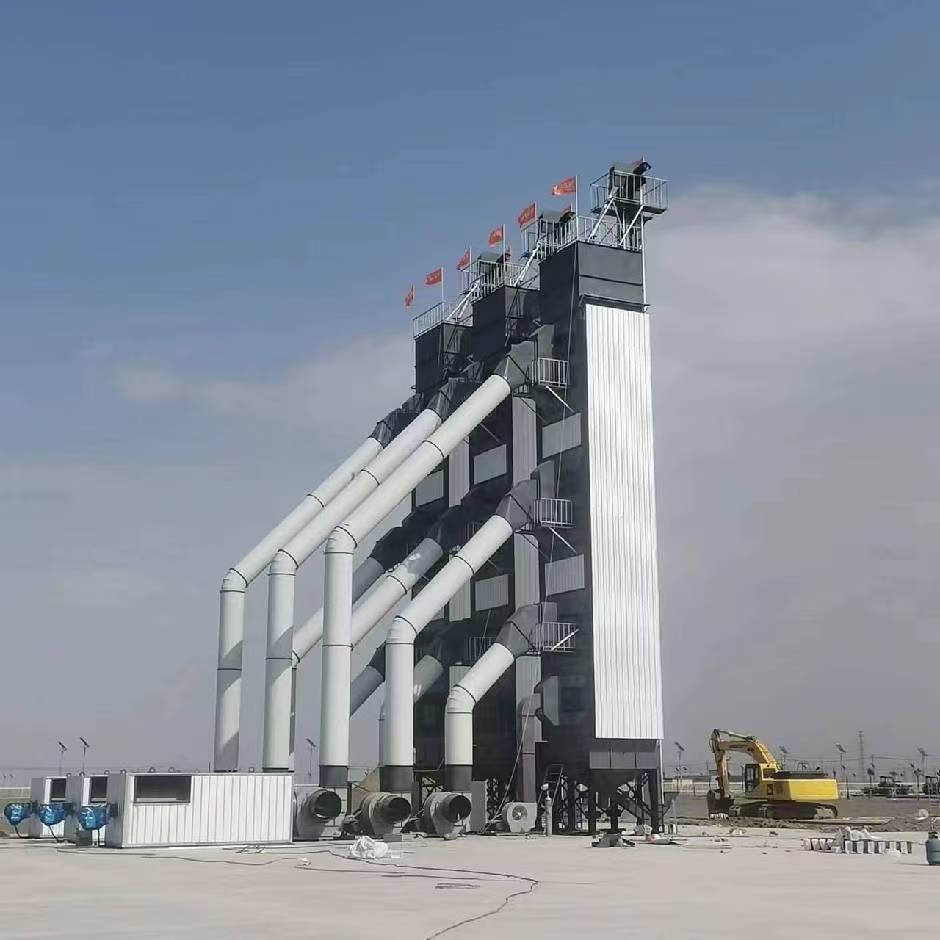

5HL Series – Continuous Flow Grain Dryers
Industrial-scale continuous drying for maximum throughput and efficiency. Capacities from 100 to 1000 tons per day.
- Capacity: 100–1000 TPD
- Moisture Removal per Pass: 13–15%
- Heat Sources: Gas, Oil, Biomass, Steam, Coal
- Models: 5HL-1000, 500, 300, 200, 150, 120, 100
An Africa investor planned to establish a modern rice milling facility from scratch in a tropical climate, requiring high reliability and adaptability to local conditions.

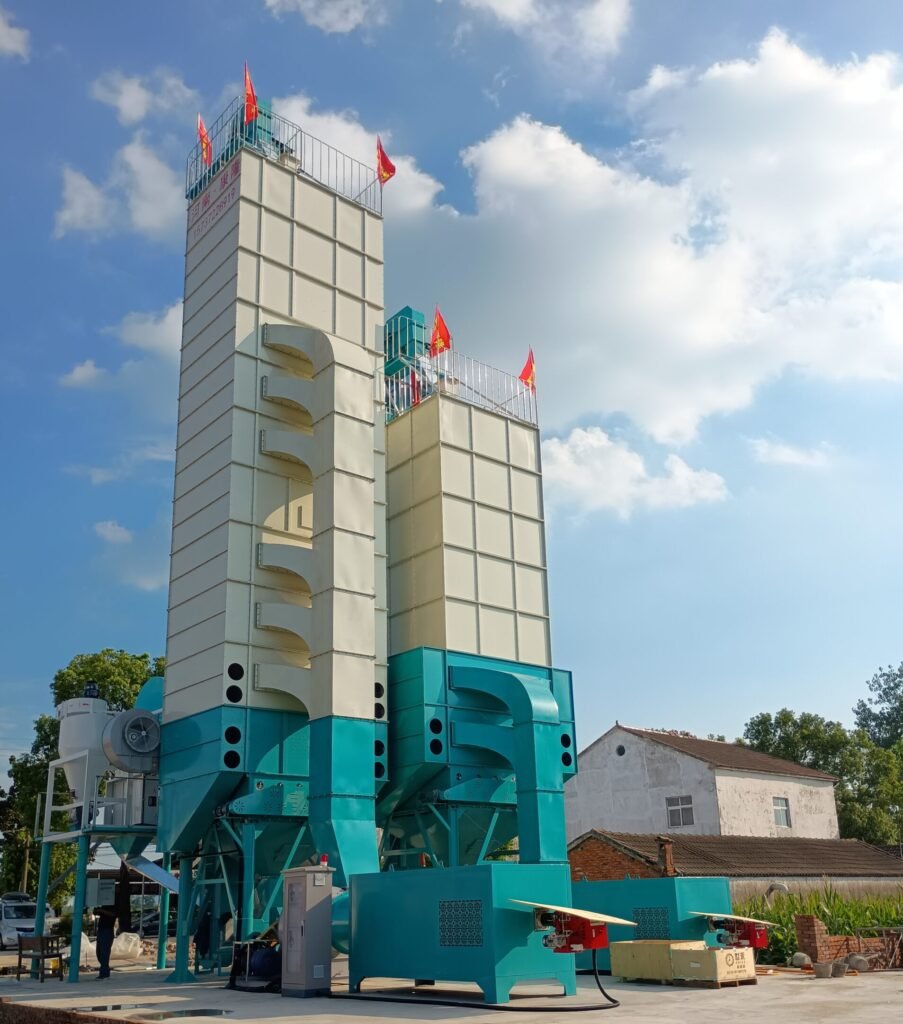

5HX Series – Batch Recirculating Grain Dryers
Gentle, uniform drying for seeds, breweries, and specialty grains. Batch capacities from 20 to 50 TPD, with optional compact mobile units from 1–20 TPD.
- Batch Capacity: 20–50 TPD (wheat/rice)
- Drying Temperature: 45–80°C (adjustable)
- Low Breakage: ≤0.3%
- Models: 5HX-50, 5HX-32, 5HX-20
5HL Series: The Backbone of Industrial Grain Drying
The 5HL series is engineered for continuous, high-volume drying operations. With capacities ranging from 100 to 1000 tons per day, it is the preferred choice for large grain depots, processing parks, and cooperatives. Patented counter-flow/mixed-flow technology ensures uniform drying while significantly reducing energy consumption. Models are available with multi-stage temperature control and advanced PLC automation.
Technical Specifications
Key Advantages
- High throughput up to 1000 TPD
- Patented counter-flow/mixed-flow technology for uniform drying
- Save >30% Energy Compared to Conventional Dryers
- Modular design for easy transport and installation
- Robust galvanized steel construction (1.2–2.0mm, zinc layer ≥275g/m²)
- Long Service Life: Reliable operation >15 years
Optional Configurations
- AmGrain Brain Pro – IoT remote monitoring & cloud platform
- Stainless steel construction for corrosive environments
- Additional cooling sections for high-ambient regions
- High-temperature drying kit (up to 160°C)
- Online moisture meter (accuracy ±0.5%)
- Variable frequency drives for energy saving (10–20%)
5HX Series: Gentle & Precise Batch Drying for Premium Grains
The 5HX series recirculating batch dryers are designed for gentle, uniform drying of seeds, malting barley, and specialty grains. With batch capacities from 20 to 50 tons and low-temperature control (45–80°C), they minimize breakage and preserve germination rates.
Technical Specifications
Key Advantages
- Low-temperature drying (35–45°C for seeds)
- Fully automatic PLC control with multi-stage temperature curves
- Low grain breakage (<0.3%) – ideal for seeds and malting barley
- Uniform drying with recirculation technology
- Compact footprint, easy installation
- Modular design for expandable capacity
Optional Configurations
- Monitor Remotely with AmGrainTech Brain Pro IoT Platform
- Low-temperature program for seeds (35–45°C)
- Stainless steel grain contact surfaces
- Online moisture meter
- Grain temperature sensors
Downloads
Flexible Heat Source Options
Choose the best energy solution for your operation
